High intensity 300W 395nm UV LED Chip Low Thermal Resistance

Name: High intensity 300W 395nm UV LED Chip Low Thermal Resistance
Brand: LEARNEW OPTO
Price: 1 USD

China High intensity 300W 395nm UV LED Chip Low Thermal Resistance wholesale

Brand Name : LEARNEW OPTO

Model Number : LN-CVS35UV-P120

Certification : CE/RoHs

Place of Origin : China

MOQ : 5000

Price : USD Current $90TO $99 Per Pieces

Payment Terms : T/T, Paypal, Alipay, Wechat

Supply Ability : 10000 per month

Delivery Time : 7-12 working days

Packaging Details : Under 10pieces, anti-static bag and Foam will be used for pacakge, shipping parcel box size 22mm*13mm*15mm

Substrates : ALN Coppering

View Angle : 30°

Whole Size : 35*35MM

LENS : QUARTZ GLASS LENS

VF : 34-38V

IF : 5000mA(Max=7000mA)

Density : 5000+mW/CM2 at 80MM distance

Chips : LG or SEOUL

Contact Now

High Intensity 300W 395nm UV LED Chip Low Thermal Resistance

Learnew new uva-led 34-38V 300W 3535 365nm 385nm 395nm led uv chips for uv led curing system

models	LN-CVS35UV-P120-A
Dominant Wavelength	395nm
Optical Power	125000-150000mW
Circuit	10S12P
Lighting Area	22*35MM
CHIPS	VERTICAL(LG or SEOUL SEMI)
LENS	QUARTZ GLASS LENS
SUBSTRATE	ALN Coppering

Design Advantage:

low thermal resistance
High effiency 40%-50%
High density and intensity
Screw free assemble for high power curing use
Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design
Special view angle in 30DEG or 120DEG

Appilcation:

Offset printer
3D printer
Exposure machines
Inkjet printer
High intensity curing Market like 3KW,7kW,15KW...

High intensity 300W 395nm UV LED Chip Low Thermal Resistance

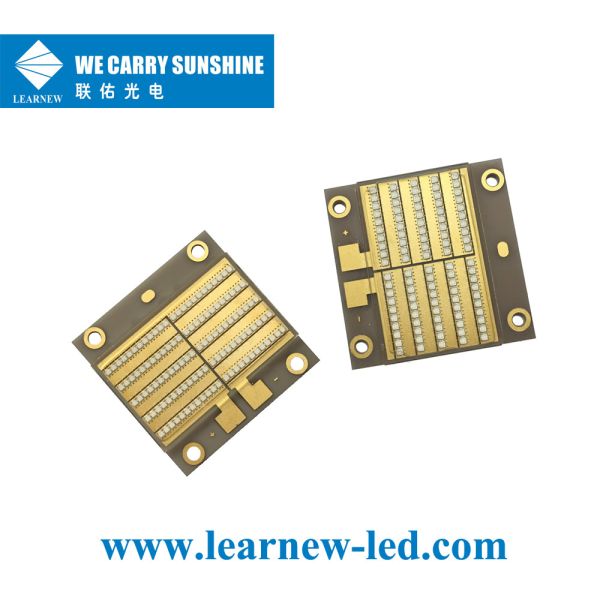

Product picture

Q:Are you manufacturer or trade company?

A:We are an experienced and professional LED manufacturer.also,We have very experienced R&D engineers and we have strong ability to do ODM projects.Quality is guaranteed by professional team of R&D and QC.

Q: What technical support can I get after purchase?

A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.

Q: If there is LED failure, how can you support?

A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
